RENTAL DIVISION

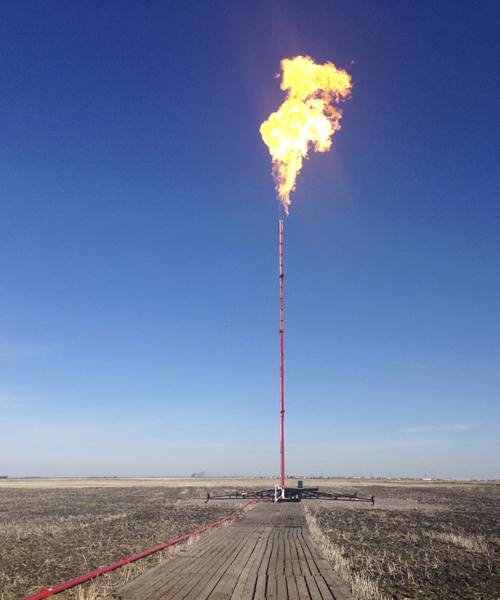

    10" x 120' Skid Mount Flare Stack
    120' skid mount
    120' skid mount
    Standards & Specifications
     This unit is completely self contained.  No additional equipment required to set it up.
    • 10” main
    • 2 - 4” Auxiliary lines
    • 2” Shooter
    • 1/2” Pilot
    • Propane fireball ignition
    • 12V Solar electronic ignition ensures continuous pilot (Optional)
    • Powered by hydraulic pump with Honda engine
    • Windload rating  75 mph (120 km/h)
    • Zero Ground Disturbance

    • Footprint:
      • length 61’ (18.6 m)
      • width  61’ (18.6 m)

    • Unit weight    34,172 lbs (15,500 kg)

    • Transport dimensions:
      • length           40’ (12.2 m)
      • width              8’ 6” (2.6 m)
      • height           10’ 6” (3.2 m)
     This unit is completely self contained.  No additional equipment required to set it up.
    • 10” main
    • 2 - 4” Auxiliary lines
    • 2” Shooter
    • 1/2” Pilot
    • Propane fireball ignition
    • 12V Solar electronic ignition ensures continuous pilot (Optional)
    • Powered by hydraulic pump with Honda engine
    • Windload rating  75 mph (120 km/h)
    • Zero Ground Disturbance

    • Footprint:
      • length 61’ (18.6 m)
      • width  61’ (18.6 m)

    • Unit weight    34,172 lbs (15,500 kg)

    • Transport dimensions:
      • length           40’ (12.2 m)
      • width              8’ 6” (2.6 m)
      • height           10’ 6” (3.2 m)
    10 x 120 Flare Stack

    10 x 120 Flare Stack

    10 x 120 Flare Stack
